In stock - ships in 1-3 days

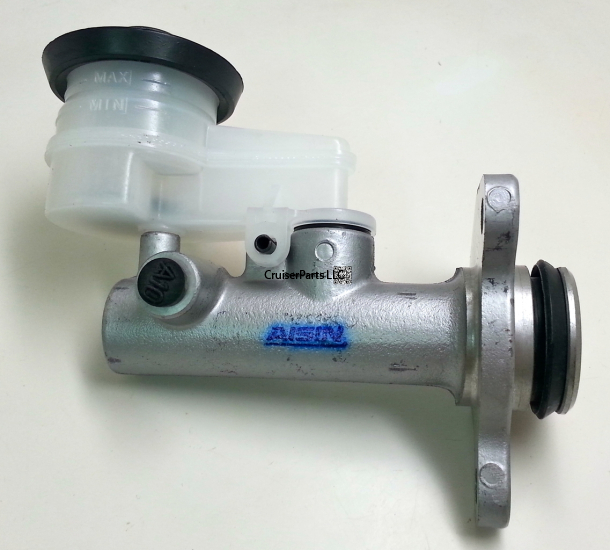

70 Series Clutch Master Cylinder - Bundera, Hardtop 1990-1996, Pickup 1984-on New clutch master cylinder for Landcruiser with clutch booster.
Landcruiser FJ73 HZJ73 PZJ73 1/90-7/91
Landcruiser FZJ75 HZJ75 8/92-7/99 LX troop carrier
Landcruiser HDJ78 HDJ79 HZJ78 8/99-12/06 RV or LX models
NOTE - can be used to replace the early cast clutch master on Landcruiser BJ73 BJ74 FJ73 models 10/85-12/89 however the clutch line pipe end will need modifying to fit
Clutch Master Cylinder (boosted type) for the RHD HZJ7x & PZJ7x series Land Cruiser - 3 bolt mounting.
The clutch master cylinder for the BJ70, BJ71, BJ73, BJ74 is no longer available.
This part can be used to replace worn out clutch master cylinder units on the vacuum boosted BJ70, BJ71, BJ73, BJ74 Series RHDs, where the booster mounts behind the firewall, as the clutch masters for those units are no longer in production.
There is no provision to mount the heat shield; you will have to zip tie or otherwise secure it differently.
The fluid outlet port is out of rotation when compared to the BJ part.
You should replace the slave cylinder at the same time. Matching clutch slave (release) cylinders:
The HZJ part number is: 31401-60060 (Toyota, HZJ76/77/78/79, HDJ78/79, PZJ70 from 1/1990)
The BJ74 part number is: 073-001217
Replaces HZJ7x: 31401-60060
Replaces and upgrades for BJ7x: 31401-60022 (BJ70, BJ71 with clutch booster, 10/1987 - 1/1990) and 31401-60042 (BJ74) – see the pipe-end note above
Aisin Part. Made in Japan
| Vehicle Fitment & Applications |
| Series / Chassis Models | Production Years | Engine / Application Notes |
| 70 Series Bundera (PZJ7#, KZJ7#, HZJ7#, BJ7#, LJ7#, RJ7#) | 03/1984 - | Aisin application listing (NiParts) | Aisin CMT-081 |
| 70 Series Hardtop (#J7#) | 07/1990 - 05/1996 | Aisin application listing (NiParts) | Aisin CMT-081 |
| 70 Series Pickup (#J7#) | 11/1984 - | Aisin application listing (NiParts) | Aisin CMT-081 |
| 70 Series Diesel (HDJ78, HDJ79) | 08/1999 - 01/2007 | 1HD-FTE (4.2L 24V EFI Turbo Diesel) | genuine Toyota 31401-60060 |
| 70 Series Diesel (HZJ76, HZJ77, HZJ78, HZJ79) | 01/1990 - | 1HZ (4.2L I6 Diesel) | genuine Toyota 31401-60060 |
| 70 Series Diesel (PZJ70) | 01/1990 - 08/1999 | 1PZ (3.5L I5 Diesel) | genuine Toyota 31401-60060 |
| 70 Series Diesel (BJ74) | 10/1987 - 01/1990 | 13B-T (3.4L Turbo Diesel) | CruiserParts cross-reference Toyota 31401-60042 |
If you have any questions about the other models of Land Cruisers that these fit, please feel free to give us a call and we will be glad to help you find the right fit for your needs.
If you have any questions about the item(s) that you may need please feel free to call and we will be glad to help you find what you are looking for. Feel free to call or email the contact information listed below.
Price shown is for an Aftermarket part.
All Remanufactured and New Genuine Toyota Parts have a 1 Year Warranty on them.
(Used, New, Refinished, Rebuilt/Remanufactured, and Aftermarket options may also be available. If so, select below.)
All Used Parts have a 90 Warranty on them and are guaranteed to be in good working and/or serviceable condition. Some cleaning, sandblasting and painting may be required per visual preference.
