1991-1997 Slee Auxiliary Light Harness
To facilitate easy installation of auxiliary lights we now offer a plug and play harness. This harness was designed to work with the FZJ80 lighting system.

Configuration 1

In this setup, the harness will power the auxiliary lights when the truck's lights are turned on. This setup is normally used for fog or low beam supplementary lights.

Configuration 2

In this setup, the harness will only power the auxiliary lights when the truck's hi-beams are switched on. This is the preferred way to run driving lights since they will be turned off when the truck is switched to low beams.

While using either configuration, the lights can manually be turned off with the master in-cab switch. The harness comes with the switch lead that needs to be connected to a normally-open switch inside the vehicle.

The reason the harness is set up this way, is to make sure the auxiliary lights are also turned off with the auto-off feature of the truck's headlights.

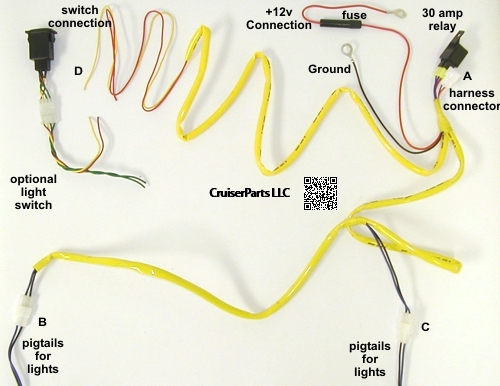

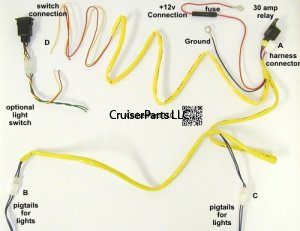

The harness takes power directly from the battery via a fused lead and supplies power to the two light pigtails using a switched relay.

This is made to be used in conjunction with the 9005/9006 Upgrade Harness or on it's own with an optional 9005 or 9006 jumper harness.

Vehicle Fitment & Applications
Series / Chassis Models	Production Years	Engine / Application Notes
80 Series & LX450 (FJ80, FZJ80, HZJ80, HDJ80, Lexus LX450)	1991 - 1997	Direct Replacement / OEM Spec Fitment

If you have any questions about the other models of Land Cruisers that these fit, please feel free to give us a call and we will be glad to help you find the right fit for your needs.

---

If you have any questions about the item(s) that you may need please feel free to call and we will be glad to help you find what you are looking for. Feel free to call or email the contact information listed below.

Price shown is for an Aftermarket part.

All Remanufactured and New Genuine Toyota Parts have a 1 Year Warranty on them.

(Used, New, Refinished, Rebuilt/Remanufactured, and Aftermarket options may also be available. If so, select below.)

All Used Parts have a 90 Warranty on them and are guaranteed to be in good working and/or serviceable condition. Some cleaning, sandblasting and painting may be required per visual preference.
