Left Seat Extension Kit 73-78 40 series

Ships in 1-3 days

Left Seat Extension Kit 1973-1978 40 series
If you have a '73 - 12/78 FJ40 and are 6 feet tall or taller, then you need our seat bracket extension kit. This kit moves the driver's seat back approximately 2 inches. If you don't think 2 inches gives you a lot of room, try moving your seat forward 2 inches and see the difference.

You will have all the leg room you have ever wanted with no modifications. Installs in minutes and can easily be removed. This kit comes with all the necessary stainless hardware and the brackets are powder coated.

This kit is for the Left front driver's seat only. Add 2" to your leg room. This is an awesome well needed upgrade to any 1973 to 1978 FJ40 Land Cruiser (This will also work with the BJ40 and the HJ40). This is for the LEFT HAND DRIVE VERSION ONLY. If you have longer legs this will enhance the comfort and safety of your 1973, 1974, 1975, 1976, 1977 and 1978 40 Series Land Cruiser.

Installation instructions are listed below:

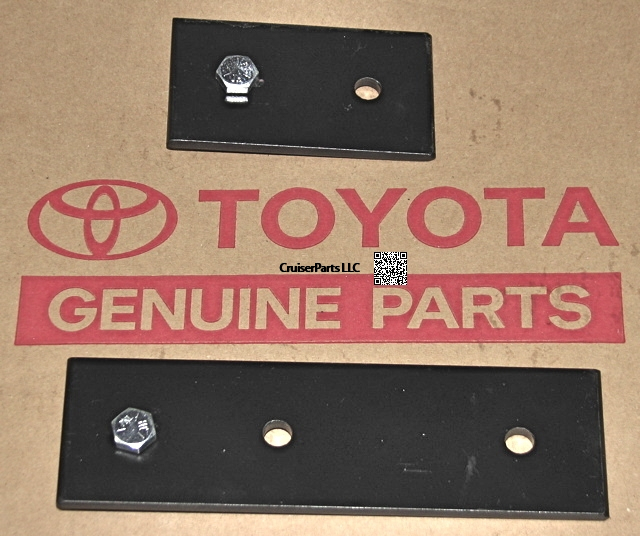

Seat Extension Bracket



Please read all steps of instructions before beginning installation.

  • 1) Remove three bolts holding the front seat sides to the floor pedestals. (One on the left, two on the right). (14mm Wrench)
  • 2) Loosen (do not remove) the two bolts that hold the seat track to the rear pedestal. (17mm Wrench).
  • 3) Remove the four bolts that hold the rear pedestals to the floor (14mm wrench). Swivel the pedestals 180 degrees around and reinstall the four bolts (do not tighten at this time).
  • 4) With 1 of the bolts provided. Attach the short extension bracket to the left front floor pedestal. Install the original bolt through the seat track into the rear hole of the extension bracket. (Hole with nut already attached to the extension bracket.)
  • 5)Install the long extension bracket to the right side only one of the holes in the seat slide will be used. (Follow Instructions in Step 4)
  • 6) With all bolts snug (not tight) move seat slide forward and back a few times. Then tighten all bolts.


  • Vehicle Fitment & Applications
    Series / Chassis ModelsProduction YearsEngine / Application Notes
    40 / 45 Series (FJ40, BJ40)1973 - 1978Front | Rear | Left Hand (LH / Driver Side)

    If you have any questions about the other models of Land Cruisers that these fit, please feel free to give us a call and we will be glad to help you find the right fit for your needs.


    If you have any questions about the item(s) that you may need please feel free to call and we will be glad to help you find what you are looking for. Feel free to call or email the contact information listed below.

    Price shown is for an Aftermarket part.

    All Remanufactured and New Genuine Toyota Parts have a 1 Year Warranty on them.

    (Used, New, Refinished, Rebuilt/Remanufactured, and Aftermarket options may also be available. If so, select below.)

    All Used Parts have a 90 Warranty on them and are guaranteed to be in good working and/or serviceable condition. Some cleaning, sandblasting and painting may be required per visual preference.





    Tags: land cruiser, landcruiser, land cruisers, landcruisers, 40-TRACK-EXT, 40TRACKEXT, FJ40, BJ40

    ***Photo shown is for representative purposes only and may not match actual product.***

    Current Reviews: 1

    • Shipping Weight: 3 lbs
    • Manufactured by: *CruiserParts*
