1HZ Diesel Turbo Kit 1990-1997 HZJ80 series w/ CT26


Send us the price
Brand new Genuine Toyota 1HZ Turbo diesel kit. This is a 1hz turbo kit that we put together for the 90-97 1HZ diesel engines that do not have a turbo originally. Includes all of the exhaust piping to hook into the factory exhaust and a conversion pipe for the 80 series if you originally had the 1FZ-FE engine. Kit is complete new genuine Toyota bolt on application.
But, requires drilling and tapping of the oil feed hole on the side of the block.

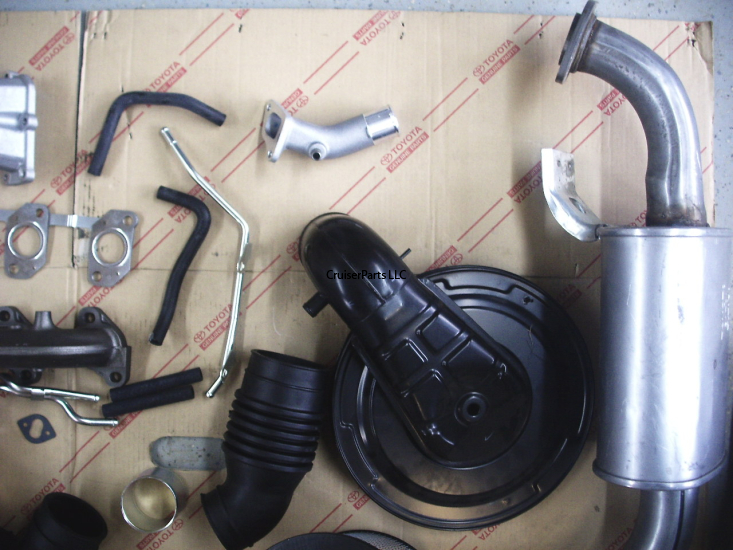

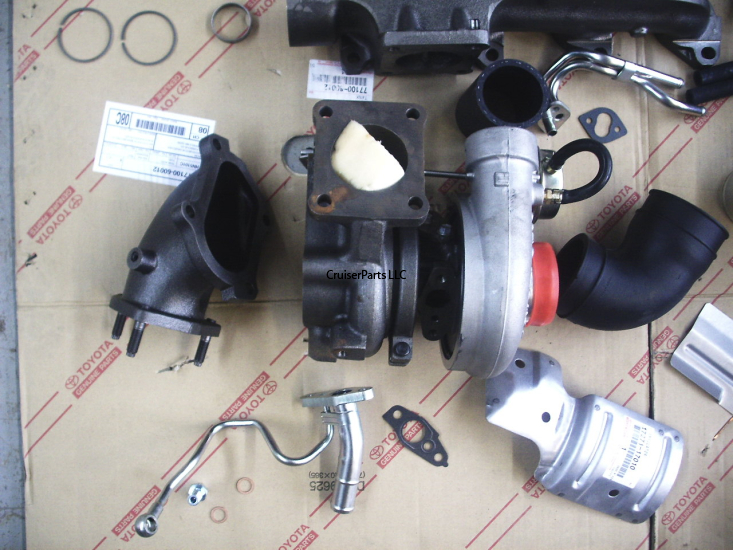

Kit includes:

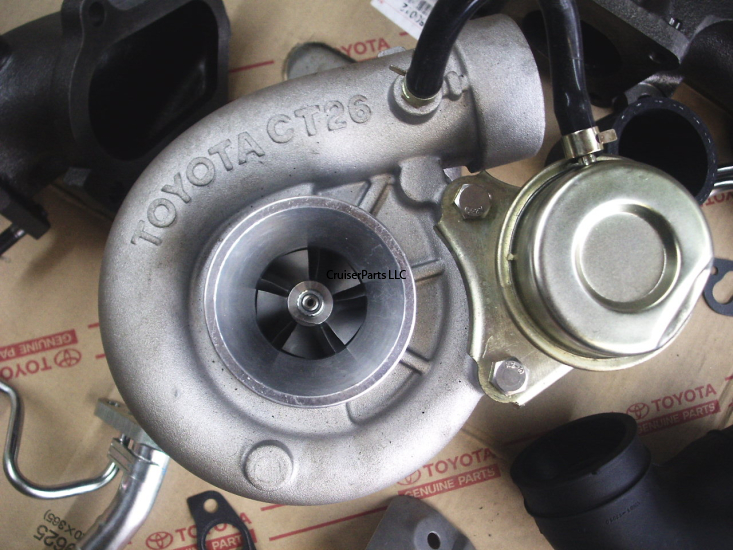

1 x New reproduction CT26 Wolun Turbo

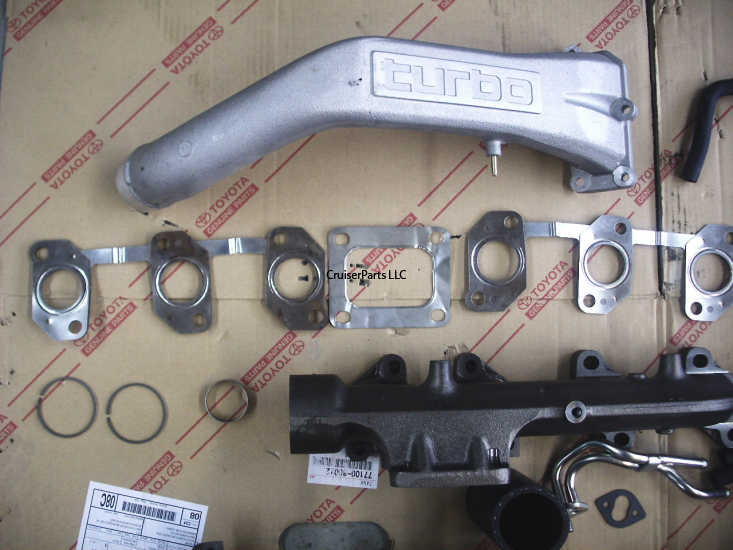

1 x Turbo Manifold
You have to reuse your last section of stock manifold just like AXT or Turbo glide.
4 x bolts from the turbine housing to the turbo unit
4 x studs/nuts for the turbo to manifold unit
3 x studs/nuts for the turbine outlet should also be there.
1 x CT26 Turbo unit to Manifold Gasket (aftermarket)
2 x Manifold to Head Gasket
2 x Exhaust Manifold Ring
1 x Exhaust Manifold Collar
1 x Dump Pipe/Turbine Outlet
1 x Turbine outlet to Turbo housing gasket (aftermarket)
1 x Dump Pipe to down pipe Gasket
3 x Exhaust Stud
1 x Insulator Shield
1 x Insulator #2
1 x Turbo Drain Gasket
1 x Oil Drain Pipe
1 x Drain Pipe Hose
1 x Drain Union Bolt
2 x Union Bolt Copper Washer
1 x Down Pipe 80 series turbo specific
1 x Turbo Water Pipe #1
1 x Turbo Water Pipe Gasket
2 x Turbo Water Hose
1 x Turbo Water Pipe #2
1 x Water Bypass Hose
1 x Water Bypass Hose #2
1 x Turbo to Charge Pipe Hose
1 x Turbo Charge Pipe
1 x Charge Pipe Gasket
1 x Air Cleaner Hose #1
1 x Air Cleaner Hose #2
1 x Air Cleaner Pipe
1 x Air Cleaner Top
The air cleaner lid is all that is included, you reuse your lower air filter housing.
1 x Turbo Air Filter
1 x Water Pipe Outlet Housing
1 x Drain Pipe for Oil Pan Kit (aftermarket)
1 x Gasket set(aftermarket)

We have supplied over lots of these kits with happy customers world wide.

  • Shipping Weight: 46lbs
  • Manufactured by: Genuine Toyota
