1HZ Diesel Turbo Kit Universal type kit w/ CT26

Brand new Genuine Toyota 1HZ Turbo diesel kit. This is a 1hz turbo kit that we put together for the 1HZ diesel engines that do not have a turbo originally. Kit is a complete new genuine Toyota bolt on application.
This kit is the type that does not require drilling or tapping and is slightly different from factory as this kit uses a oil feed line and aftermarket flange /oil drain at the turbo unit along with a bolt in or weld in oil return feed for your oil pan. It does not come with an exhaust down pipe. Any exhaust shop can fabricate a new exhaust system from the included Turbo plate
Kit includes:
1 x New reproduction CT26 Wolun Turbo
1 x Turbo Manifold
You have to reuse your last section of stock manifold just like AXT or Turbo glide.
4 x bolts from the turbine housing to the turbo unit
1 x CT26 Turbo unit to Manifold Gasket (aftermarket)
2 x Manifold to Head Gasket
2 x Exhaust Manifold Ring
1 x Exhaust Manifold Collar
1 x Dump Pipe Plate/Turbine Outlet
1 x Turbine outlet to Turbo housing gasket (aftermarket)
1 x Dump Pipe to down pipe Gasket
1 x Insulator Shield #1
1 x Insulator #2 (Discontinued)
1 x Turbo Drain Gasket
1 x Oil Drain Pipe Hose (you must supply)
1 x Turbo Water Pipe Kit (aftermarket)
1 x Turbo to Charge Pipe Hose
1 x Turbo Charge Pipe
1 x Charge Pipe Gasket
1 x Air Cleaner Hose #1
1 x Air Cleaner Hose #2
1 x Air Cleaner Pipe
1 x Air Cleaner Top
The air cleaner lid is all that is included, you reuse your lower air filter housing.
1 x Air Filter (Must specify either with a cone style K&N universal filter or a factory round air cleaner unit)
1 x Water Pipe Outlet Housing
1 x Drain Pipe for Oil Pan Kit (aftermarket)
1 x Gasket set(aftermarket)


THESE ARE HIGH DEMAND KITS AND TAKE 2-6 WEEKS TO SHIP FROM THE DATE OF ORDER

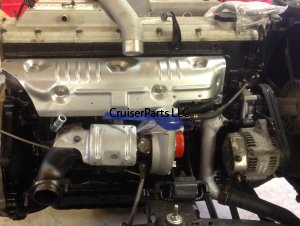

Pictures shown are from the Toyota 80 series Turbo conversion and while similar is not the kit pictured.
